Air Motors

Teryair Air Motors

Teryair manufactures a growing range of pneumatic equipment and tools. The equipment boasts of cutting edge features, comparable with the world's best technolo-gies. Teryair equipment competes successfully against industry leading brands, feature for feature. Teryair pneumatic vane motors are manufactured under a robust ISO 9001:2015 QA system. The production facility is state of the art and the motors produced have a CE approval and Ex Certifcation.

Every pneumatic vane motor is thoroughly tested on a test bench for horsepower, speed and torque. We promise unrivalled product reliability. Spares are readily available at the distributor level and at our factory warehouse.

Teryair pneumatic vane motor start from 0.8 KW (1.07HP) and go upto 7.1KW (9.5HP) All motors can be ordered in Lube free versions for clean room environments.

Vane Motor Features & Advantages

• • Vane motors are self-cooling and therefore run cool and can be operated continuously.
• • They can be confgured for high roational speeds.
• • They can be stalled without damage to components, when stalled there is no consumption of energy.
• • Compact size compared to electrical motors.
• • No decline in motor effciency over time, bearings & vanes are replaceable to restore motors effciency.
• • No damage from overloading.
• • Speed and torque can be variable by simple modulation of input air pressure and air volume.
• • Easily and rapidly and repeatedly reversible.
• • Easy maintenance & repair with low cost comparedto electrical motors.
• • Lightweight, cool running, stall resistance and explosion proof
• • Availability with mounting fexibility & full warranty.

Vane Motors Application

Teryair Vane Motors versatile workhorses that can be used in a diverse range of situations across numerous industries. Some of the typical products application industry-wise are.

Construction & Machinery : Concrete vibrators / Hose & Cable Feeders / Pipe Cutting & Threading.

General Machinery : Multiple uses such as power-driven tumblers, Barrels, Indexing tables, Paint fnishing equipment.

Environmental : Air Ventilation & Ducting Fans.

Valve Operating : Actuation of Valves.

Lifting Applications : Mucking Winches, Pneumatic Chain Hoist.

Conveyors : Material Handling & Automatic Material Movement through the driver chain.Safe use in Hazardous Atmosphere in Chemical Industries.

Lubricated or Lube-free ?

The Lubricated series of vane motors are suitable for general applications. See the Code explanations on page six. Standard motors can take a maximum inlet air pressure of 7Kg/cm2 (7 bar) and like any other pneumatic machinery, needs a lubricator ftted online. Lubricated motors offer the most economical solution.

Applications where the working environment around the motor is sensitive to pollution, exhaust traces of oil mist are not allowable, need lube-free motors. These motors can operate totally without lubrication and do not exhaust any contaminants into the atmosphere. They are ideal for applications which need such clean environments such as food and pharma processing. Lube-free motors operate at a max pressure of 5.6kg/cm2 (5 bar)

Both Lubricated and lube-free motors are Atex Certified by default. They have an Ex code of G II 2GD Ex h IIC T6 Gb & 011 2GD Ex h IIC T4 Gb.

All teryair motors are CE certified as meeting European Directives: (2006/42/EC) Machinery Safety and Harmonized standards..

1VM AIR MOTOR

Power	upto 0.35kW (0.45HP)
Torque	upto 0.55 Nm (5 lbs-in)
Air Consumption	0 to 30m3/hr (0 to 22 cfm)
Motor Weight	0.9kgs (2lbs)
Operating Pressure	1.4 to 7kg/cm2 (20 to 100PSI)
Max Allowable speed	7000 rpm (ATEX limit)*
REPAIR KIT for 1VM	Kit No 8119701 (Common for all variants, includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings)

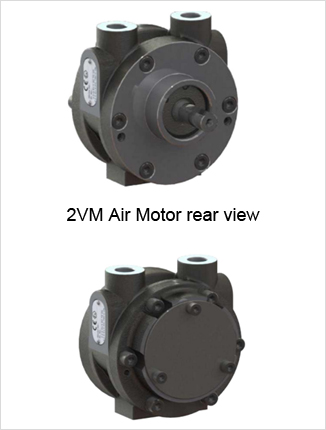

2VM AIR MOTOR

Power	upto 0.7kW (0.9HP)
Torque	upto 2 Nm (19 lbs-in)
Air Consumption	0 to 50 m3/hr (0 to 30 cfm)
Motor Weight	3.25 kgs (7.15 lbs)
Operating Pressure	1.4 to 7kg/cm2 (20 to 100PSI)
Max Allowable speed	4000 rpm (ATEX limit)
REPAIR KIT for 2VM	Kit No 8039701 (includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings)
REPAIR KIT for 2VM IEC/NEMA	Kit No 8039702 (includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings)

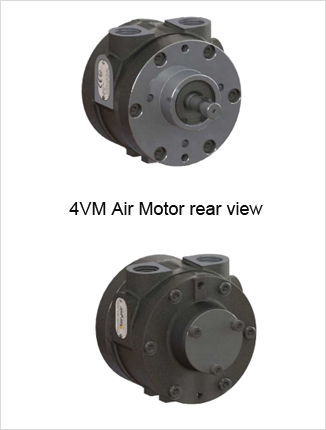

4VM AIR MOTOR

Power	upto 1.25 kW (6.7 HP)
Torque	upto 4 Nm (35 lbs-in)
Air Consumption	0 to 120 m3/hr (0 to 72 cfm)
Motor Weight	3.8 kgs (8.3 Ibs)
Operating Pressure	1.4 to 7kg/cm2 (20 to 100PSI)
Max Allowable speed	3500 rpm (ATEX limit)
REPAIR KIT for 2VM	Kit No 8049701 (includes Blades, Bearings, Shims, Blade springs, Oil Seals and 0 rings)
REPAIR KIT for 2VM IEC/NEMA	Kit No 8049701 (includes Blades, Bearings, Shims, Blade springs, Oil Seals and 0 rings)

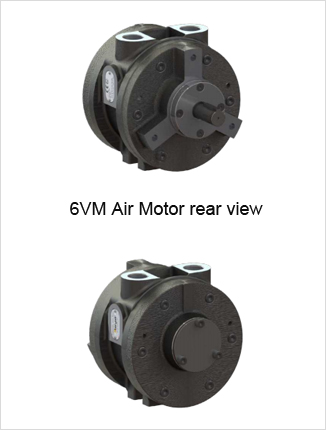

6VM AIR MOTOR

Power	upto 3 kW (4 HP)
Torque	upto 12 Nm (105 lbs-in)
Air Consumption	0 to 240 m3/hr (0 to 140 cfm)
Motor Weight	7.5 kgs (16.5 lbs)
Operating Pressure	1.4 to 7kg/cm2 (20 to 100PSI)
Max Allowable speed	3500 rpm (ATEX limit)
REPAIR KIT for 2VM	Kit No 8059701 (includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings)
REPAIR KIT for 2VM IEC/NEMA	Kit No 8059701 (includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings)

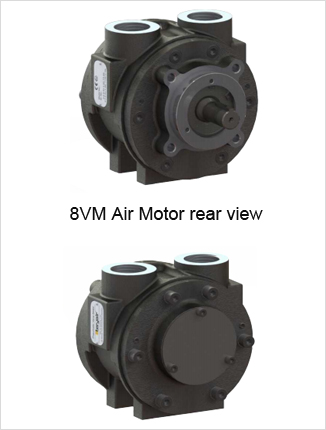

8VM AIR MOTOR

Power	upto 4kW (5 HP)
Torque	upto 15 Nm (130 lbs-in)
Air Consumption	0 to 300 m3/hr (0 to 175 cfm)
Motor Weight	11 kgs (24.2 lbs)
Operating Pressure	1.4 to 7kg/cm2 (20 to 100PSI)
Max Allowable speed	2500 rpm (ATEX limit)
REPAIR KIT for 2VM	Kit No 8059701 (includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings)
REPAIR KIT for 2VM IEC/NEMA	Kit No 8059701 (includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings)

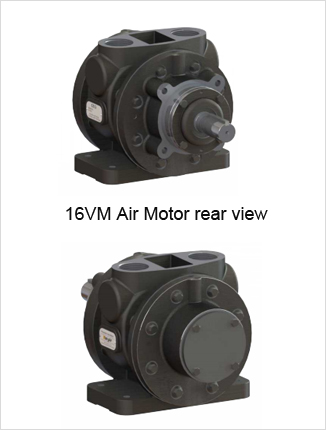

16VM AIR MOTOR

Power	upto 7 kW (9.5 HP)
Torque	upto 35 Nm ( 294 lbs-in)
Air Consumption	0 to 470 m3/hr (0 to 270 cfm)
Motor Weight	32 kgs (70 lbs)
Operating Pressure	1.4 to 7kg/cm2 (20 to 100PSI)
Max Allowable speed	2000s rpm (ATEX limit)
REPAIR KIT for 2VM	8109701 Common for all variants, includes Blades, Bearings, Shims, Blade springs, Oil Seals and O rings
